PCR system
Click to enlarge

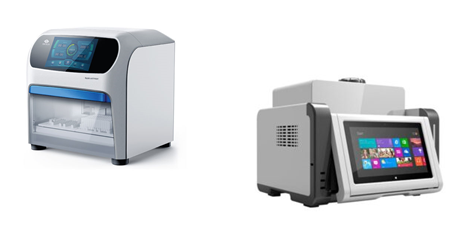

The PCR system of the Hangzhou Bioer Technology co.,Ltd includes the:
  • Nucleic Acid Purification System "GenePure Pro"
  • Fluorescent Quantitative Detection System " LineGene K Plus"

GenePure Pro ( NPA-32P )

GenePure Pro is a new generation of automatic nucleic acid purification system with cutting-edge technology and family-style appearance developed by Bioer. It adopts MB separation technology and uses 96-well deep well plate as test carrier to realize automatic high-throughput and high-purity extraction and purification of DNA/RNA. It can deal with various samples including blood, tissue, and various cells. This system is with simple operation and complete function, and can be customized for hardware and software function based on the detailed requirements of the reagent used by users to meet the demand of high-purity and refined nucleic acid purification.
  • High purity: With newly developed magnetic rods and dynamically-adjustable amplitude technology, it can deal with various small magnetic beads, and extract with no residue and attachment.
  • Precise temp. Control: Deep-well heating is with more comprehensive conclusiveness, which can greatly reduce temperature difference between pre-set temperature and actual in-tube temperature.
  • Intelligence : Unique control cabin panel UI design displays all parameters at one time; the operation is easy and can be quickly mastered.
  • Diversification : Update from 32 to 48-samples throughput by replacing the block.
  • High safety: It is with fully automatic operation, and use disposable strip tips and UV sterilizing lamp to avoid aerosol pollution among different batches.
  • Rapid extraction: Automatic operation is very fast and efficient. It can quickly finish extracting 1-32 samples in 15-40 minutes.
  • Open platform: Bioer provides various pre-filled kits to meet the demand of nucleic acid extraction from different samples, which can be widely applied in fields including disease control center, food and drug supervision, legal medicine, inspection and quarantine, and clinical diagnosis.
  • Standardization: The user can edit multiple running programs according to different requirements. Its large capacity of on-board memory ensures uniformity of experiment conditions.

LineGene K Plus

LineGene K Plus fluorescent quantitative detection system adopts fluorescence real-time detection method to analyze amplification of PCR templates, suitable for polymerase chain reaction fluorescence quantitative detection in research areas including human genome engineering, forensic medicine, oncology, organization and population biology, paleobiology, zoology, and botany, and in clinical diagnosis for virus, cancer and genetic disease. The PCR detection system is in-vitro medical diagnosis equipment which can be used in clinical lab for copy-number quantitative analysis of various genes with fluorescence polymerase chain reaction method.

Powerful performances:

  • Unique module bottom detection technology of patent for invention effectively presents mutual interruption.
  • High-intensity LED excitation light source, energy conservation, high efficiency, long service life and free from maintenance.
  • Unique sandwich Ferrotec Peltiers heating method increases thermal transmission contact area, accelerates heat transmission and improves temperature ramp rate.
  • Multiple-point temperature control ensures best temperature uniformity of 48 wells.
  • Three independent temperature control modules ensure more accurate control of different annealing temperatures.
  • Equipped with SOAK constant temperature function, meeting the low-temperature storage demand.
  • Brand-new automatic hot lid technology, free from manual operation, automatic control, effectively present reagent evaporation.

Intelligent operating system:
  • Flexible program setting, comprehensive analysis and report functions.
  • Portable tablet compatibility with wireless use makes operation easier.
  • Various analysis modes: qualitative, relative/absolute quantitative, standard curve, melting curve, high-resolution melting curve (HRM), SNP analysis, and isothermal amplification.
  • Multiple templates, easy to find saved experiments, and fast to set up new experiment.
  • Comprehensive analysis and report function, flexibly print single and multiple sample reports.
