Description

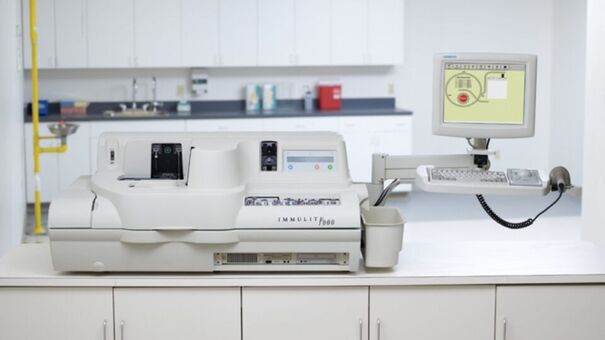

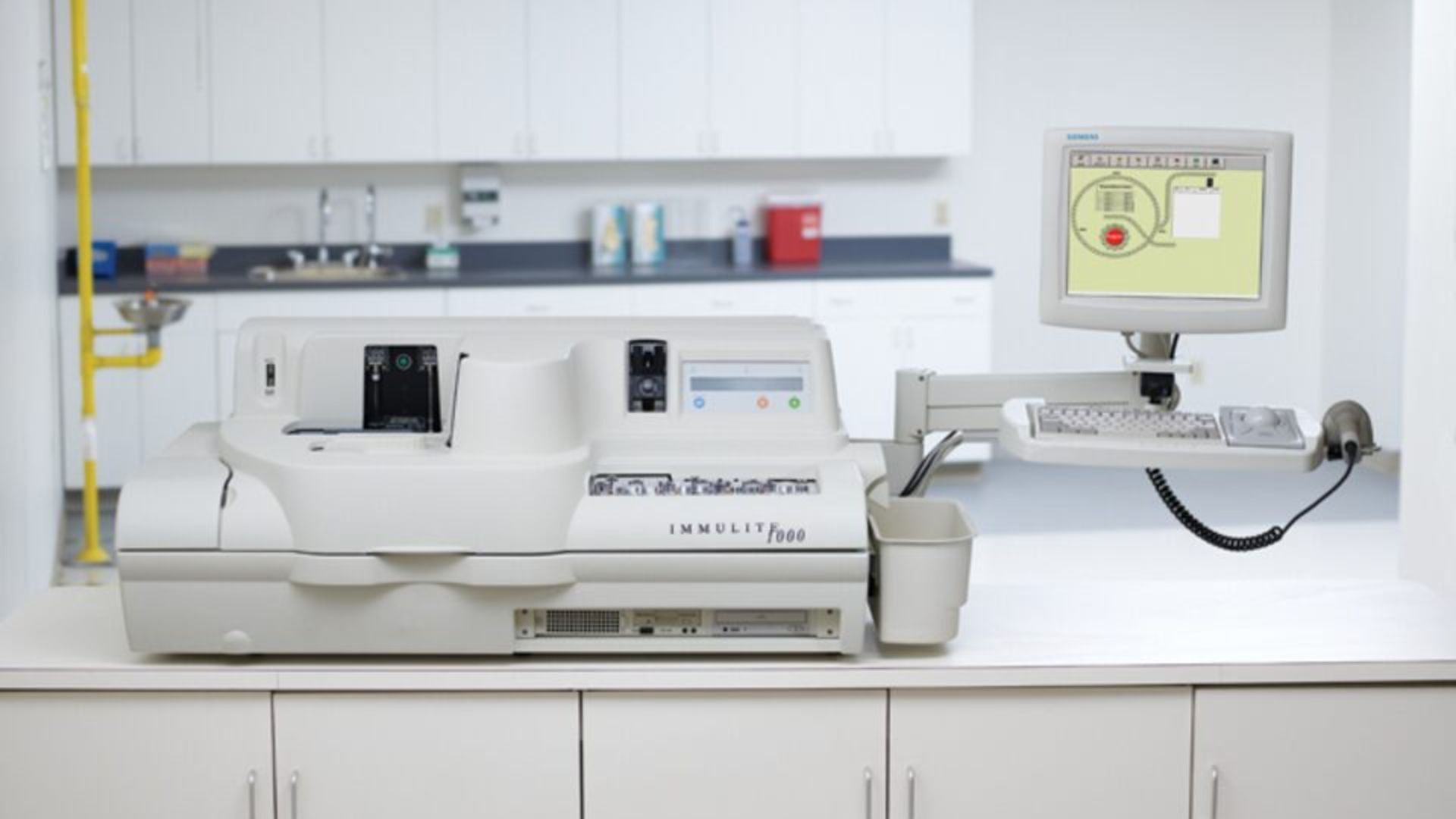

Τhe IMMULITE® 1000 system is a small bench top immunoassay analyzer. The extensive menu, low cost of operation, reliability, and ease of use makes this system a great choice for laboratories with low-volume immunoassay tests.
Key features of the IMMULITE® 1000 Immunoassay System:
Dependable operation provides laboratories with confidence
- The reliability allows laboratories confidence in assay turnaround times
- Cost of ownership is low due to minimal service, operator interventions, and operator time
Improving laboratory efficiency through the Ease of Use
- Few consumables
- Daily maintenance in less than 10 minutes
- Sample and reagent level sensors
- Easy entry of assay parameters, expiration dates, and calibration adjustment intervals
- Integration of the computer, keyboard, and monitor provide a consolidated footprint
Flexible Solutions to adapt to a laboratory's needs
- Throughput up to 120 tests per hour
- Turbo assays (Troponin I, CK-MB, Myoglobin, Intact PTH, and HCG) allow results in 15 minutes for critical tests
- 12 position reagent carousel
Technical Specifications
| Overview | |
| System Description | Random access immunoassay system |
| Throughput | Up to 120 test per hour in random or batch access mode |
| Time To First Result | 42 minutes standard mode, 15 minutes turbo mode |
| Assays On Board | Up to 12 |
| Samples and Sample Handling | |
| Sample Types | Serum, plasma |
| Sample Tubes | Indirect tube sampling |
| Sample and Reagent integrity control |
Liquid level sensors |
| Barcodes |
|
| Formats Supported | Code 38, Code 128, Codabar, and I-2 of 5 (Interleaved) |
| Reagents and Reagent Handling | |
| Reagent Positions | 12 |
| Reagent Barcodes | Allows operator to auto load calibration information and test parameters. |
| User Interface | |
| Operating System | Microsoft® Windows® 7 |
| Monitor | 15 inch touch sensitive screen |
| Maintenance | |
| Daily | 5-10 minutes |
| Weekly | 15 minutes |
| Monthly | 30 minutes |
| Environmental | |
| Operating Temperature | 18 – 32° C |
| Electrical | |
| 110 – 120 v 6 AMP 200 – 240 v 4 AMP 50/60 Hz |
|
| Dimensions |
|
| Height | 19 in / 48 cm |
| Width | 46 in / 117cm |
| Depth | 26 in / 66 cm |
| Weight | 240 lbs / 109 kg |
